NoxCam-Pola Sensor-level infrared polarimetric radiometric cameras is part of the NoxCam series, sharing the same powerful NoxEngine sensor management, image processing and embedded recording as for all cameras in the serie.
NoxCam-Pola
Contact sales or request a quote
Contact usSelect your ideal configuration together with our experts
Each integration project is unique, and many configurations are available depending on your specific requirements, distance to the observed scene, available integration volume, autonomous use, or the need to interface with the mission or system computer.
That's why our team supports you from the very first steps, helping you define the setup that best fits your technical and operational needs.
Our team of experts will provide you with the necessary factual information to understand and choose among different technologies, interfaces, protocols, and image processing features. They will help you optimize your development efforts or suggest modifications to ensure the successful integration of your high-performance infrared cameras.
To benefit from personalized guidance and design the ideal solution for your application, get in touch with us. We'll determine together the right configuration for your mission.
Description
NoxCam-Pola is part of the NoxCam series, sharing the same powerful NoxEngine sensor management, image processing and embedded recording as for all cameras in the serie.
NoxCam-Pola embeds a cooled polarimetric longwave infrared sensor, delivering within a single image, polarimetric information in four directions together with a crisp infrared image. With its high separation power between polarization direction, it provides real time, isochronous information never captured before.
Polarimetric information in known to bring advantages in applications such as Oil spill detection, Biometric security as well as NDT applications. NoxCam-Pola brings you the ideal tool for your lab and field evaluations.
Equipped with the first of its kind pixel-level polarimetric infrared detector, cooled by stirling engine, NoxCam Pola camera offers unmatched performance and flexibility in a reduced footprint, together with ease of use provided by on-board raw calibrated data recording, embedded control software and compatibility with industry standard analysis software such as Matlab® or ImageJ.
We only present general information in our product pages. Enumerating all the possibilities would make reading tedious. In addition, your project is definitely unique. It is important that we discuss it together. Contact us

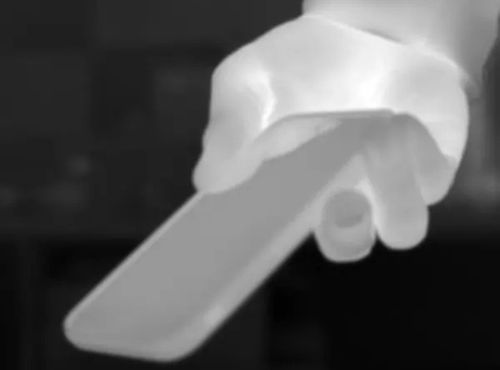

Intensity Image

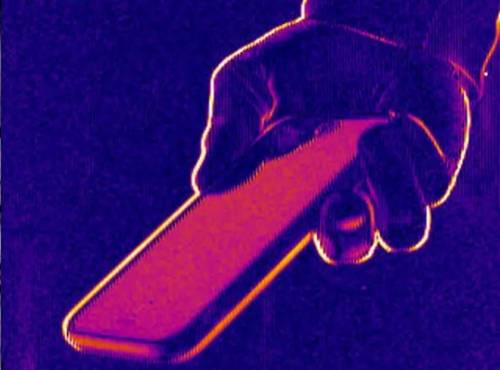

Degree of Polarization

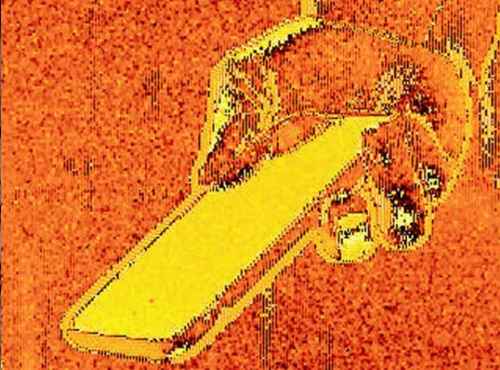

Angle of Polarization
Technical Information
NoxCam-Pola standard sensing configurations
| Detector Type: | Cooled, snapshot FPA |
|---|---|
| Spectral Band: | LWIR Band – 7μm to 10μm Integrated Optical Filter Wheel |
| Image Size: | 640×512 – 15μm pitch or 320×256 – 30µm pitch |
| Polarisation sensing: | Pixel-level 2×2 structure with distinct polarization (0°, 45°, 90°, -45°) angles |
| Frame Rate: | Up to 60Hz |
| Optical Aperture: | f/2 |
| Lenses Range: | From 12mm to 200mm Microscopic lens |
Features
Radiometric measurement
Measurement Range
Typical 5°C to 300°C, Radiometric measurement ranges are optimized to fit your application requirements and can be set between sub-zero to up to 3000°C. A Radiometric measurement evaluation is performed for each user case. Noxant’s Radiometric Measurements are compensated against temperature deviation.
NETD
Typical 20mK, it is indicative only as NETD value deviation is wide up on measurement conditions. NETD can be dramatically improved using the NoxCam HSi Synchronous Lock-in input.
Sync Input
Ultra low jitter input signal allows to synchronize the photon collection time with an external event, such as PLC signal, a rotation coder or a photoelectric cell.
Lens interface
Although we offer a wide range of lenses, we recognize that users may already own existing valuable lenses. We promote reusing them. To do so, NoxCam HSi can be fitted with Industry standard bayonet interface or a M80 interface. It is also possible to fit it with a custom interface on demand.
Data and control interfaces
Interface
- GigEVision / Genicam
- Optional Camera Link base or medium
Recording Format
- Radiometric RAW or h.264
Recording Media
- Removable 2,5″ SSD
Video output format
- Color HDMI 720p with color overlay
- Optional SDI
Software compatibility
Flexibility is important to us. NoxCam cameras are compatible with all major operating systems such as Windows®, Mac OS X® or Linux®. Recorded RAW sequences are compatible with industry standard analysis software such as ImageJ, Matlab® orLabview®. File formats, radiometric calibration data and procedures are provided to our customer on demand.
